Unbricking NIIMBOT B21_C2B

Warning

This procedure will result in the irreversible loss of factory data (serial number, MAC address, etc.).

Official firmware updates will no longer be possible. Printing via the official app will likely stop working due to an invalid serial number.

There is a risk of permanently bricking the device if it isn't already bricked.

This guide was written for hardware version 40.10. For other versions, steps and files may differ.

Firmware for different hardware versions is not interchangeable.

About the firmware for this printer

The printer runs on a Artery AT32F403ARCT7 microcontroller. The firmware consists of several parts:

  1. 0x00000000 - bootloader
  2. 0x08002000 - main firmware
  3. 0x0803f000 - section with serial number, MAC address, and other per-device data

Main firmware

The main part is simple. It is updated by the official app over Bluetooth or USB. Firmware files are not published openly, but through the API I collected all available versions here.

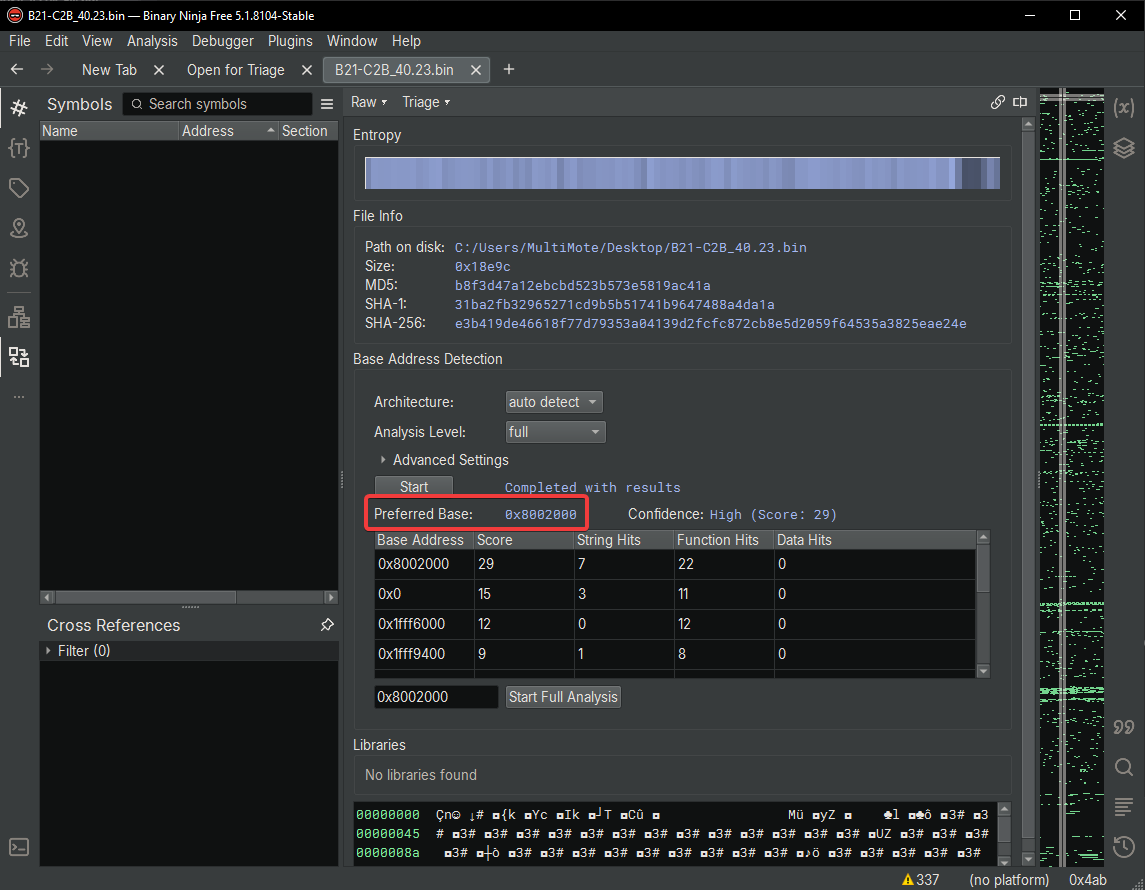

The firmware doesn't load from address zero because there is a bootloader. The easiest way I found to determine the base address was by using Binary Ninja's Triage View. Tools like basefind/rbasefind/binbloom either froze or produced nonsense.

ninja_base

Bootloader

Here's where problems start. The bootloader for this printer cannot be found anywhere.

You could try dumping firmware from a working printer to obtain the bootloader, but the microcontroller is read-protected, and disabling protection will erase the contents.

That leaves one option - writing your own bootloader.

From the Artery AT32F403A product page I downloaded everything needed: Keil packs and project templates. I won't describe the process of setting up the dev environment, since that alone would be an article.

The bootloader will be minimal. It just needs to jump to the user program at 0x08002000.

The original bootloader also handled firmware updates via USB/Bluetooth, but implementing that from scratch without knowing the original design is beyond me.

Here's the code I ended up with:

#include "at32f403a_407.h"

#define APP_ADDRESS  0x08002000

typedef void (*pFunction)(void);

void jump_to_app(void)
{
    uint32_t appStack = *(__IO uint32_t*)APP_ADDRESS;
    pFunction appEntry = (pFunction)*(__IO uint32_t*)(APP_ADDRESS + 4);

    if ((appStack & 0x2FFE0000) == 0x20000000)  // Check for valid RAM address
    {
        __disable_irq();
        SCB->VTOR = APP_ADDRESS;
        __set_MSP(appStack);
        __enable_irq();
        appEntry();
    }
}

int main(void)
{
    jump_to_app();

    while (1)
    {}
}

Compiled bootloader: AT32F403A_bootloader_min.hex

Section with unique printer data

Structure is unknown.

This section is lost when disabling microcontroller protection. At best, the printer will think its serial number is all ones.

Putting the microcontroller into programming mode

Turns out you don't need to buy a programmer to flash this chip. It's enough to switch it into USB DFU mode, after which the printer will appear as a USB device for flashing.

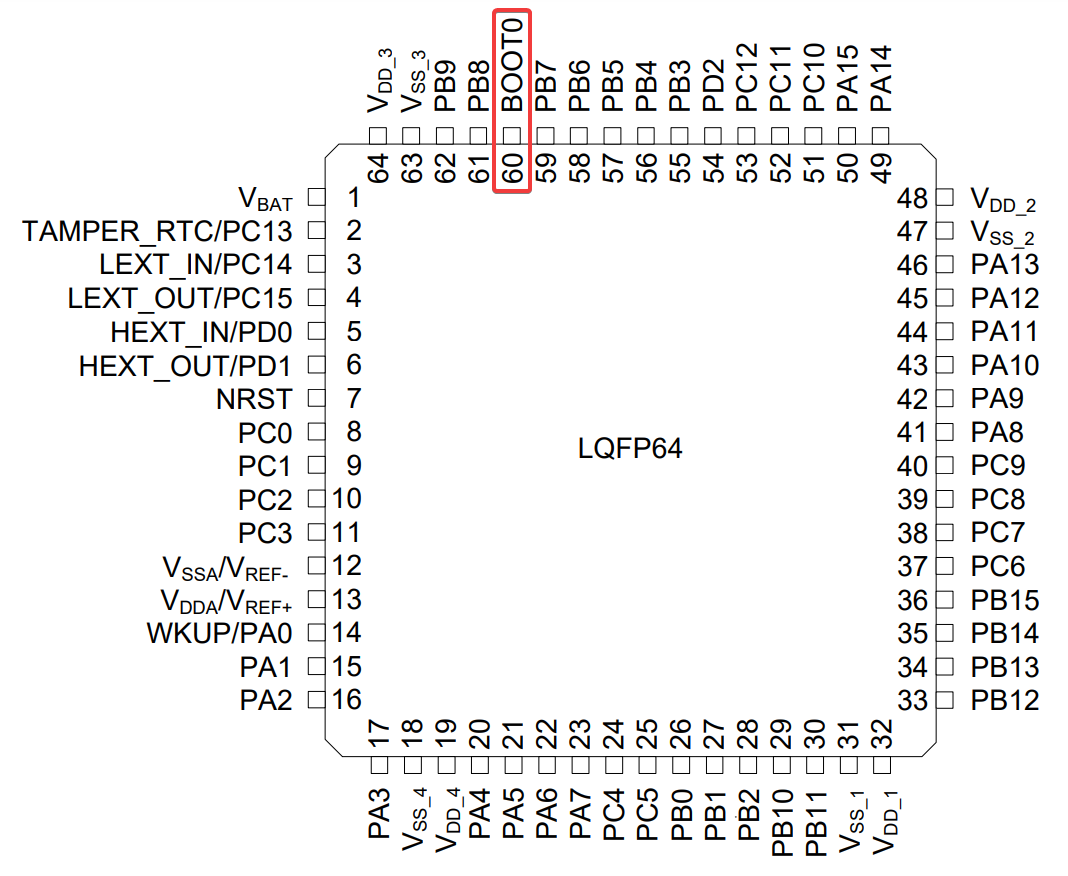

To enter USB DFU mode, the BOOT0 pin must be pulled high during power-on.

AT32F403A_LQFP64

On the board, BOOT0 is pulled low via a 10k resistor. I connected BOOT0 to 3.3V via 1k. Direct connection also works.

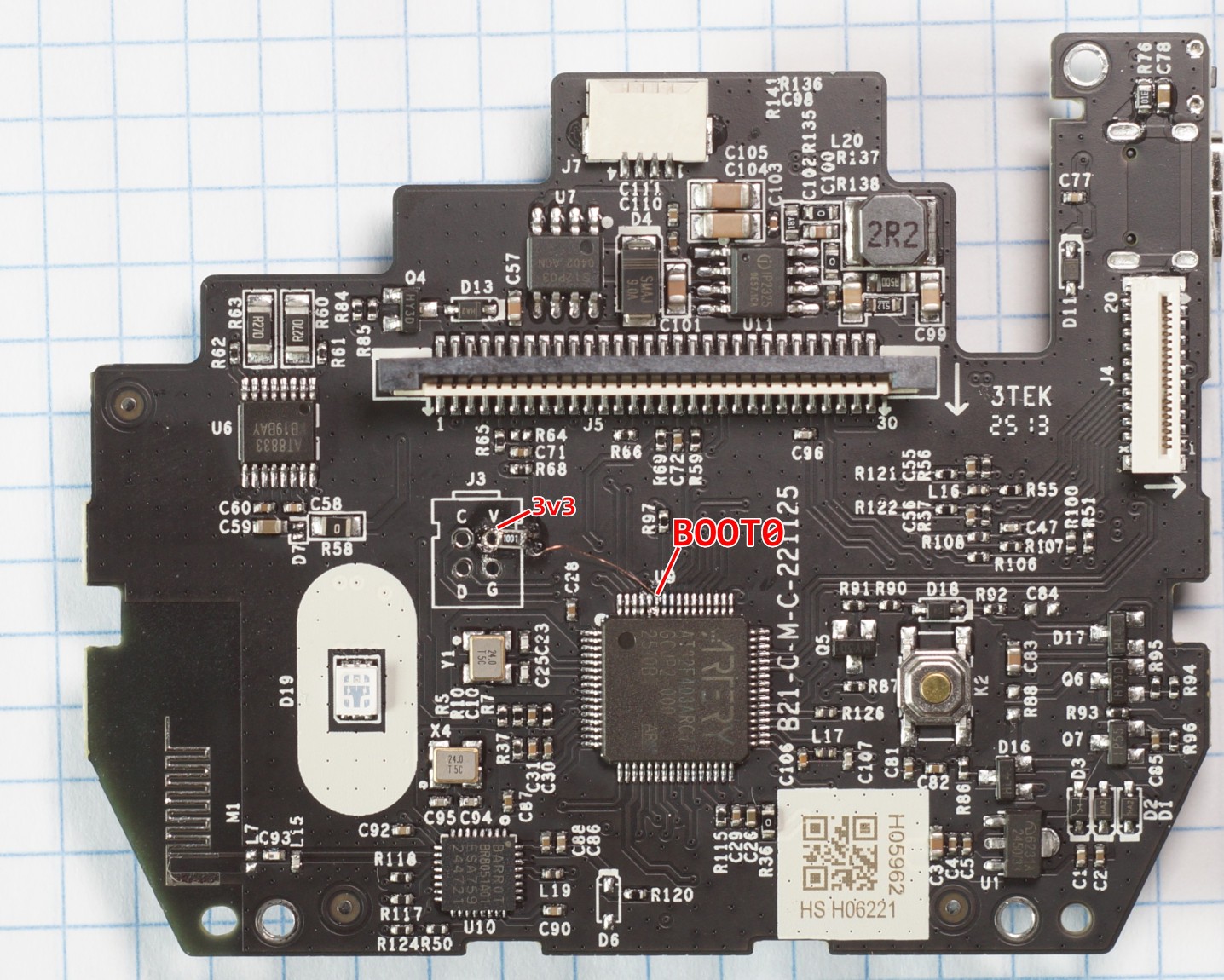

With a microscope or good eyesight, you can solder directly to the microcontroller pin. That's what I did, so I didn't even need to remove the board.

pcb_top_boot

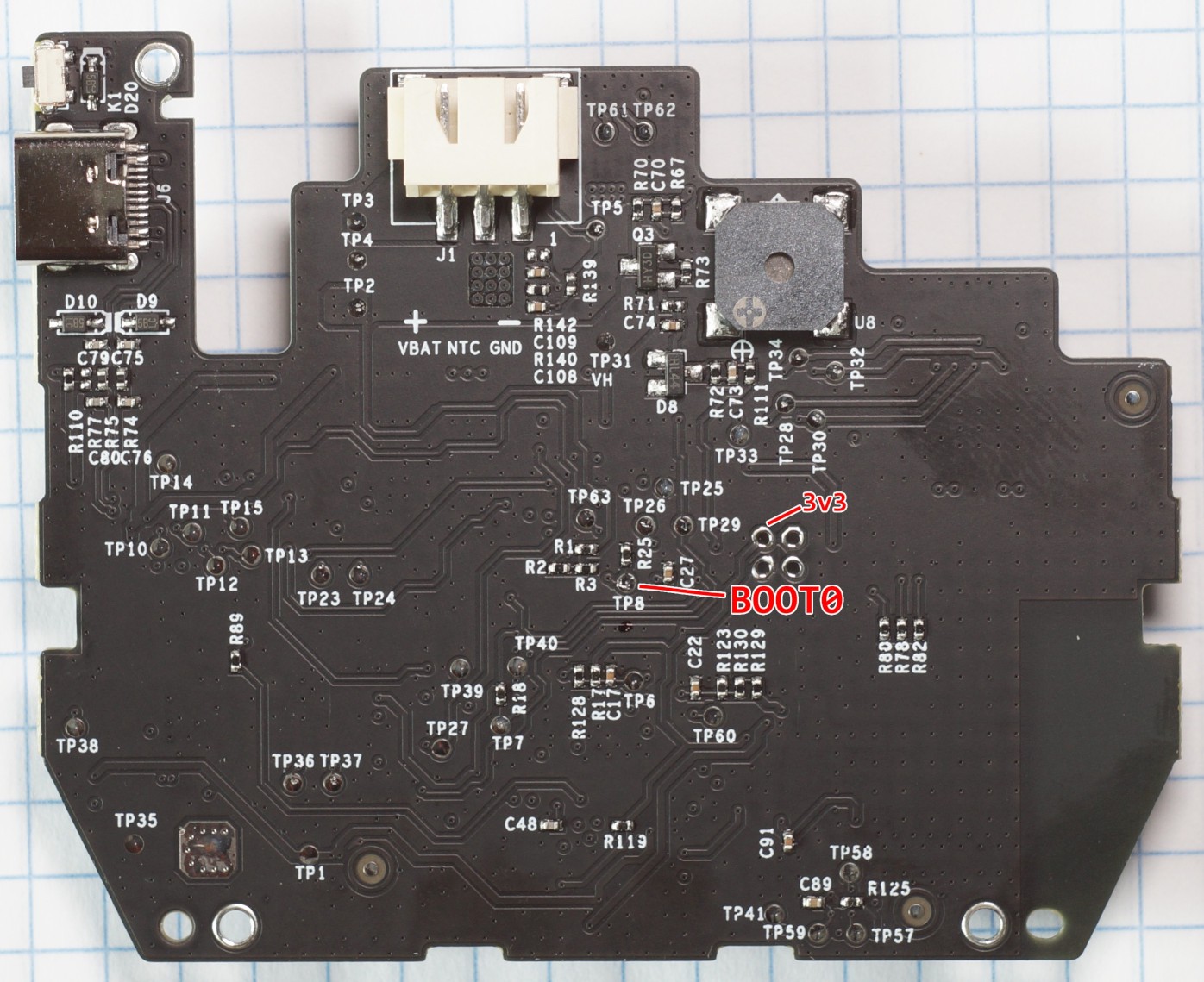

On the other side of the board, there is a testpoint for BOOT0, which can also be used.

pcb_bottom_boot

Removing microcontroller protection

The programmer can be downloaded here. It's called Artery ISP Programmer. I've also mirrored the archive at the end of this article.

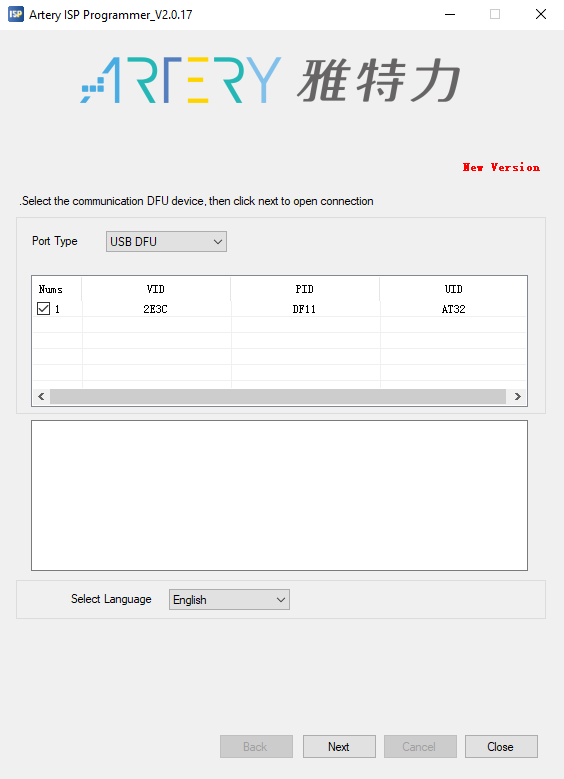

Install the driver and launch the programmer. Select USB DFU as the port type. The microcontroller should appear in the list.

ArteryISPProgrammer_connect

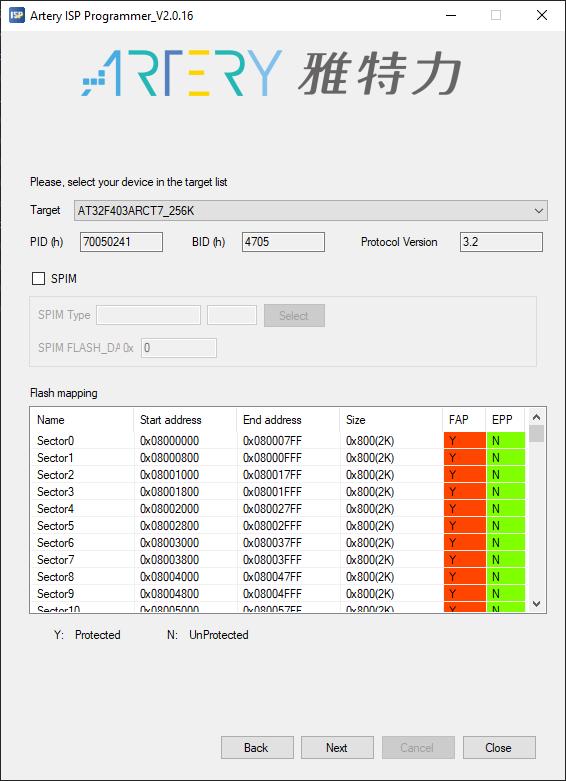

Next, you'll see the memory blocks overview. All blocks are protected. This protection must be removed.

ArteryISPProgrammer_blocks

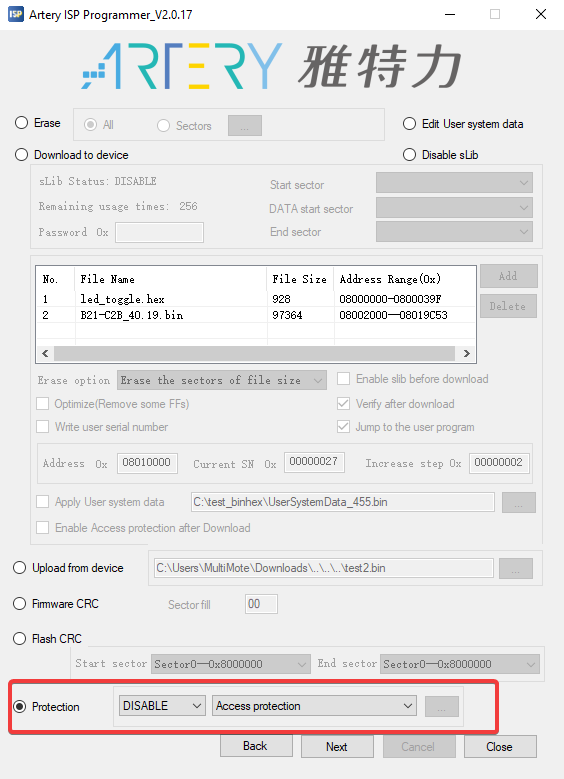

Choose Protection mode.

ArteryISPProgrammer_blocks_erase1

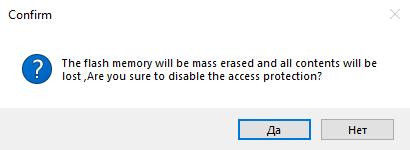

⚠️ POINT OF NO RETURN After confirmation, the printer will become completely non-functional if it showed any signs of life before.

ArteryISPProgrammer_blocks_erase2

Uploading the program

Reconnect to the microcontroller. Select Download to device mode.

  1. Click Add and select the bootloader AT32F403A_bootloader_min.hex.
  2. Click Add again and select the firmware B21-C2B_40.19.bin.

This applies only to hardware version 40.x. Other versions need their own firmware (stable / testing). The major firmware version must match the hardware version (e.g., hardware 12.01 requires firmware 12.x).

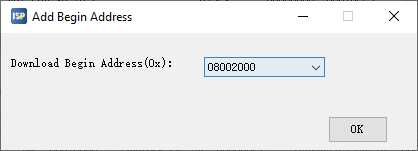

Set the start address to 08002000.

ArteryISPProgrammer_blocks_addr

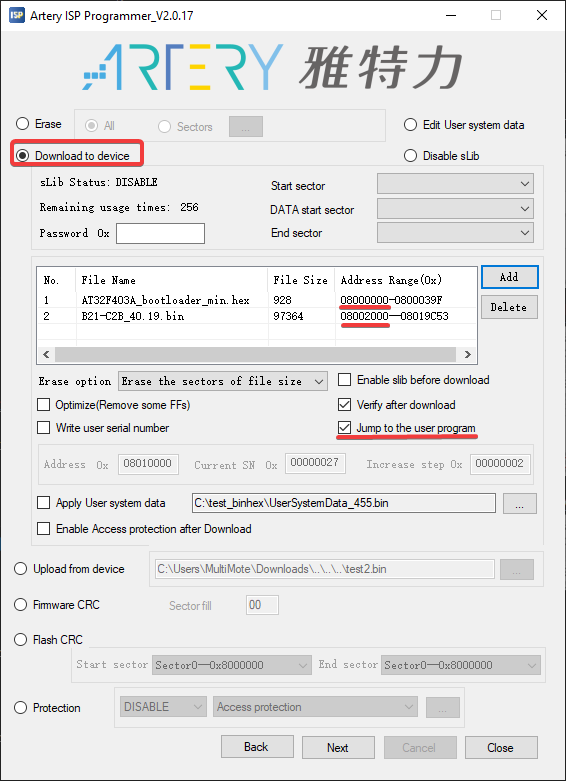

Check the Jump to user program option so the printer immediately runs its program after flashing. Otherwise, you'll need to remove the jumper and reconnect USB.

ArteryISPProgrammer_prog

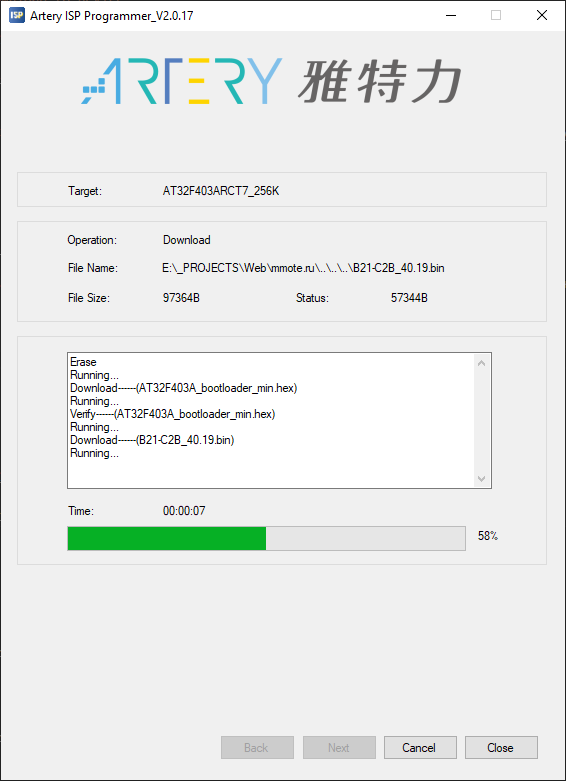

Start the process.

ArteryISPProgrammer_flashing

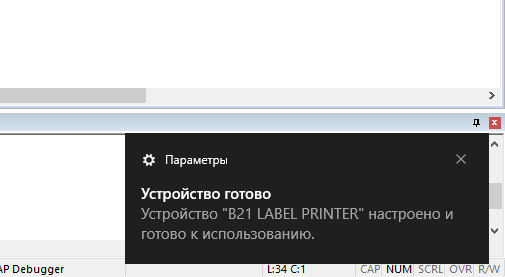

At the end, the printer will be detected by the computer and start blinking its LED.

newdevice

That's basically it. As side effects, further official firmware updates won't work. Printing from the official app will also likely fail due to serial number issues.

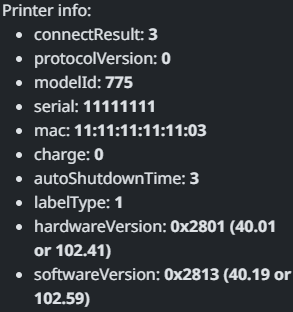

printerinfo

So NiimBlue is an option.

Miscellaneous

Copies of files from the Artery site:
