Printers protocol

Packet structure

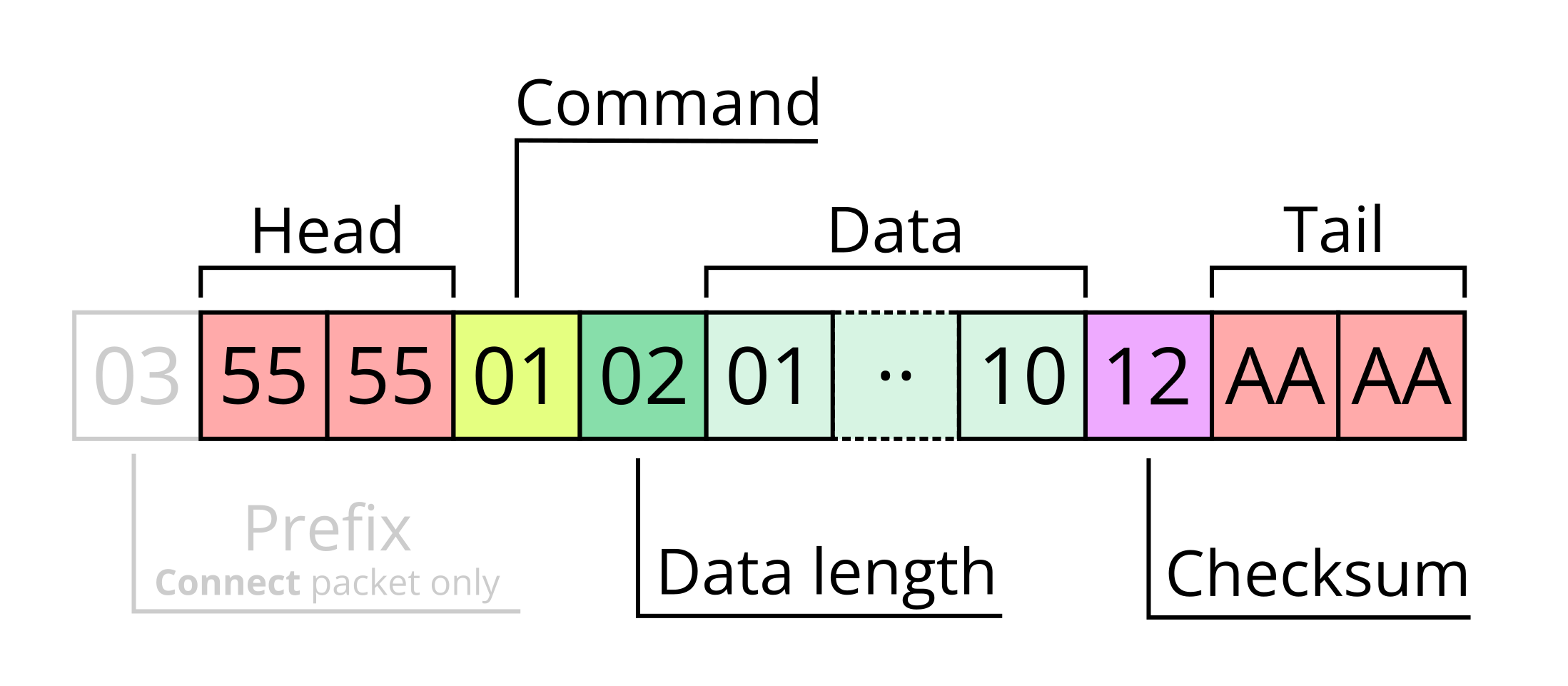

Main packet

  • Prefix - prefix 0x03 is present in only one command - Connect.
  • Head - always 2 bytes (0x55 0x55).
  • Command - command (packet) identifier.
  • Data Length - number of bytes of data.
  • Data - data with Data length length.
  • Checksum - calculated by XOR of all bytes from Command to the last byte of Data (inclusive).
  • Tail - always 2 bytes (0xAA 0xAA).

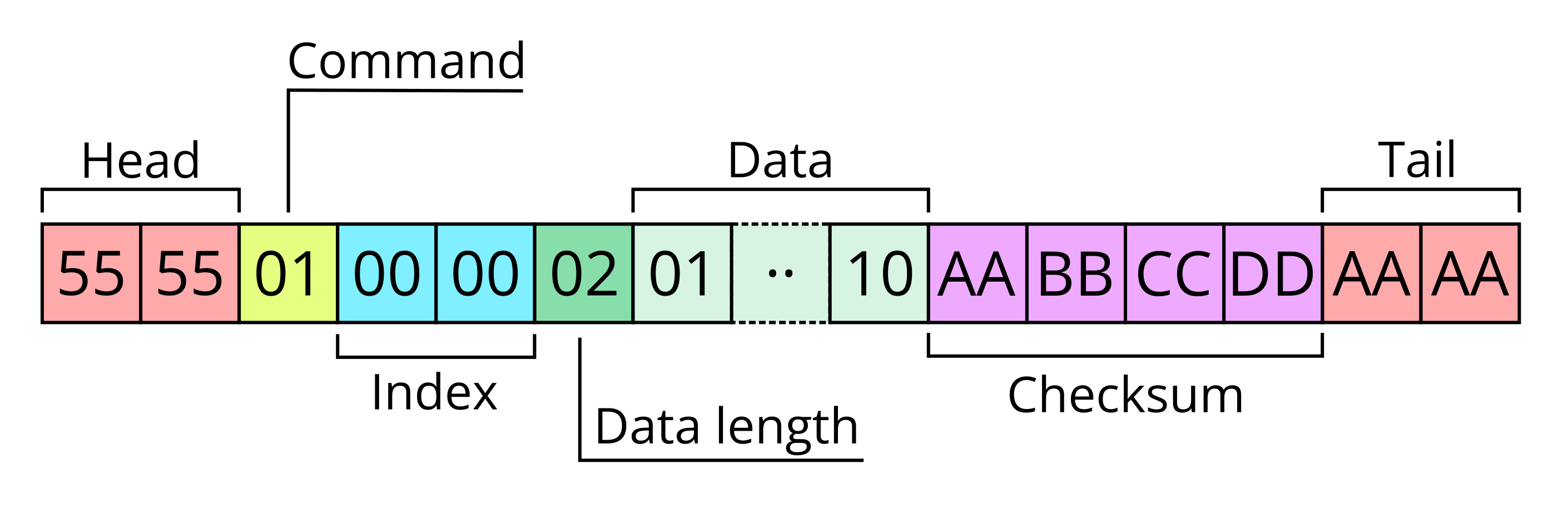

CRC32 (firmware) packet

  • Head - always 2 bytes (0x55 0x55).
  • Command - command (packet) identifier.
  • Index - firmware chunk index, used only in FirmwareChunk and In_RequestFirmwareChunk packets, otherwise equals zero.
  • Data Length - number of bytes of data.
  • Data - data with Data length length.
  • Checksum - crc32 checksum of all bytes from Command to the last byte of Data (inclusive).
  • Tail - always 2 bytes (0xAA 0xAA).

List of packet commands

Client → Printer (Request IDs)

Request ID Name Response ID(s) Simple OUT Simple IN
0x01 PrintStart 0x02 ❌ ✅
0x03 PageStart 0x04 ✅ ✅
0x05 PrinterLog 0x06 ✅ ❌
0x07 PrinterConfig2 0x08 ❌ ❌
0x09 GetKeyFunction 0x0a ✅ ❌
0x0b AntiFake 0x0c ❌ ❌
0x0d GetPrintQuality 0x0d ❌ ❌
0x0e TubeSettings 0x0e ❌ ❌
0x0f TubeTypeAndWidth 0x0f ❌ ❌
0x10 SetOutNet 0x10 ❌ ❌
0x11 SetLocalTemplate / SetCurrentTimeFormat 0x11, 0x12 ❌ ❌
0x12 GetCurrentTimeFormat 0x11 ✅ ❌
0x13 SetPageSize 0x14 ❌ ✅
0x14 PageHeight 0x14 ❌ ❌
0x15 PrintQuantity 0x16 ❌ ✅
0x17 TemplateHistory 0x17, 0x63 ❌ ❌
0x19 PrinterUsage 0x19 ❌ ❌
0x1a RfidInfo 0x1b ✅ ❌
0x1c RfidInfo2 0x1d ✅ ❌
0x1e SetReversePrinterFeed 0x1f ❌ ❌
0x1f MarginTopHeight 0x1f ❌ ❌
0x20 PrintClear 0x30 ✅ ✅
0x21 SetDensity 0x31 ❌ ✅
0x22 SetPrintSpeed 0x32 ❌ ❌
0x23 SetLabelType 0x33 ❌ ✅
0x26 SetLanguageType 0x36 ❌ ❌
0x27 SetAutoShutdownTime 0x37 ❌ ✅
0x28 PrinterReset 0x38 ✅ ❌
0x2c SetPrintMode 0x3c ❌ ❌
0x2d SetLabelMaterial 0x3d ❌ ❌
0x2e SetVolumeLevel 0x3e ❌ ❌
0x2f SetAntiSetter 0x3f ❌ ❌
0x40 PrinterInfo 0x41–0x4f ✅ ❌
0x52 PrintingHistory 0x62–0x63 ❌ ❌
0x54 RfidSuccessTimes 0x64 ✅ ❌
0x58 SoundSettings 0x68 ❌ ❌
0x59 GetPaperInfo 0x69 ❌ ❓
0x5a PrintTestPage 0x6a ✅ ✅
0x5c HalfCut 0x6c ❌ ❌
0x70 GetVolumeLevel / WriteRFID 0x71 ❓ ❓
0x83 PrintBitmapRowIndexed ❌ (one-way) ❌ —
0x84 PrintEmptyRow ❌ (one-way) ❌ —
0x85 PrintBitmapRow ❌ (one-way) ❌ —
0x8a PrintBitmapRowDoubleColor ❌ (one-way) ❌ —
0x86 PrinterCheckLine 0xd3 ❌ ❌
0x87 CompressCommand ❌ (one-way) ❌ —
0x8e LabelPositioningCalibration 0x8f ✅ ✅
0xa1 SetPrinterConfigurationWifi 0xb1 ❌ ❌
0xa6 Pause 0xb6 ❌ ❌
0xa2 GetPrinterConfigurationWifi 0xb2 ✅ ❌
0xa3 PrintStatus 0xb3 ✅ ❌
0xa5 PrinterStatusData 0xb5 ✅ ❌
0xa7 CompressImage ❌ (one-way) ❌ —
0xaf GetPrinterCapabilities 0xbf ❌ ❌
0xc1 Connect 0xc2 ✅ ❌
0xc3 PrinterFree 0xc4 ❌ ❌
0xda CancelPrint 0xd0 ✅ ✅
0xdc Heartbeat 0xde, 0xdf, 0xdd, 0xd9 ❌ ❌
0xe3 PageEnd 0xe4 ✅ ✅
0xf3 PrintEnd 0xf4 ✅ ✅
0xf5 StartFirmwareUpgrade 0xf6 ❌ ✅

CRC32 firmware packets (Client → Printer, one-way)

Request ID Name Notes
0x91 FirmwareCrc Carries CRC32 of entire firmware blob (4-byte payload, index=0)
0x92 FirmwareCommit Signals printer to apply the firmware (payload=01, index=0)
0x9b FirmwareChunk One 200-byte chunk; index = chunk number
0x9c FirmwareNoMoreChunks Signals end of chunk stream (payload=01, index=0)

Printer → Client only

Response ID Name Notes
0xe0 In_PrinterPageIndex
0xd3 In_PrinterCheckLine
0xdb In_PrintError
0x90 In_RequestFirmwareCrc (CRC32) Requests client to send firmware checksum
0x9a In_RequestFirmwareChunk (CRC32) Requests specific chunk; index = requested chunk number
0x9d In_FirmwareCheckResult (CRC32) CRC verification result; data 01 = success
0x9e In_FirmwareResult (CRC32) Final flashing result; data 01 = success

Packet details

Two-byte values are usually u16 (big-endian).

Common packet parts:

  • LL - payload size (if not fixed)
  • CS - checksum

Simple request packet

This packet has Request ID, Data length = 1, and Data = 1.

Checksum will be same as Request ID because N^1^1 == N.

Example (RfidInfo):

55 55 1a 01 01 1a aa aa
       │  │  │  │
       │  │  │  └─ Checksum (0x1a ^ 0x01 ^ 0x01 = 0x1a)
       │  │  └─ Data = 1
       │  └─ Data length = 1
       └─ RfidInfo command

Simple response packet

Same structure as simple request. Data = 01 on success, 00 on failure.

Example (In_SetDensity, 0x31):

55 55 31 01 01 31 aa aa
       │  │  │  │
       │  │  │  └─ Checksum (0x31 ^ 0x01 ^ 0x01 = 0x31)
       │  │  └─ Data (1 = success, 0 = error)
       │  └─ Data length = 1
       └─ In_SetDensity command

Connect

The only packet that is prefixed with 0x03 before the standard header.

03 55 55 c1 01 01 c1 aa aa
│         │  │  │  │
│         │  │  │  └─ Checksum
│         │  │  └─ Data = 1
│         │  └─ Data length = 1
│         └─ Connect command
└─ Prefix byte (only for Connect)

Response (0xc2)

Data length = 1. The single byte is a ConnectResult code:

Value Name Meaning
0x00 Disconnect Not connected
0x01 Connected Connected (protocol version 0)
0x02 ConnectedNew Connected (protocol version 1)
0x03 ConnectedV3 Connected (protocol version ≥ 3; version determined via PrinterStatusData)
0x5a FirmwareErrors Firmware error state

Protocol version negotiation:

  1. Send Connect → receive In_Connect.
  2. If result = ConnectedNew → protocolVersion = 1.
  3. If result = ConnectedV3 → send PrinterStatusData → parse protocolVersion from bytes [11] and [12] of response:
    • n = data[11]*100 + data[12]
    • protocolVersion=3 if 204 ≤ n < 300,
    • protocolVersion=4 if 300 ≤ n < 302,
    • protocolVersion=5 if n ≥ 302.
    • Otherwise protocolVersion = 0.

PrinterStatusData

Request: simple.

Response (0xb5)

55 55 b5 LL XX XX SC SC PS PS PL PL PI XX CS VH VL DC DC CS aa aa
                   └──┤  └──┤  └──┤  │     │  └──┤  └──┤
                      │     │     │  │     │     │     └─ Double Color Max Cache Size
                      │     │     │  │     │     └─────── Protocol Version
                      │     │     │  │     └───────────── Supports color
                      │     │     │  └─────────────────── Packet Interval
                      │     │     └────────────────────── Max Send Size
                      │     └──────────────────────────── Single Packet Size
                      └────────────────────────────────── Single Color Max Cache Size

Packet length may vary depending on the printer model.

PrinterInfo

Request: data = 1 byte.

Type value Name Response ID Response data, notes
0x01 Density 0x41 1 byte
0x02 Speed 0x42 1 byte
0x03 LabelType 0x43 1 byte
0x04 PrinterHeadWidth 0x44 2 bytes; doesn't seem to be used in firmware
0x05 PrintingAccuracy 0x45 1 byte; doesn't seem to be used in firmware
0x06 Language 0x46 1 byte
0x07 AutoShutdownTime 0x47 1 byte
0x08 PrinterModelId 0x48 1–2 bytes model ID (if 1 byte, value is [VV 00])
0x09 SoftWareVersion 0x49 2 bytes; format varies by model
0x0a BatteryChargeLevel 0x4a 1 byte (0–4)
0x0b SerialNumber 0x4b Variable: ASCII string if ≥8 bytes, hex of first 4 bytes otherwise
0x0c HardWareVersion 0x4c 2 bytes; format varies by model
0x0d BluetoothAddress 0x4d 6 bytes reversed (varies by model)
0x0e PrintMode 0x4e 1 byte
0x0f Area 0x4f unknown

Example (get serial number):

55 55 40 01 0b CS aa aa
       │  │  │
       │  │  │
       │  │  └─ Data = 0x0b (SerialNumber)
       │  └─ Data length = 1
       └─ PrinterInfo command

Battery charge level values

Value Level
0 0%
1 25%
2 50%
3 75%
4 100%

SetDensity

55 55 21 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ Density value (model-specific range, typically 1–5)
       │  └─ Data length = 1
       └─ SetDensity command

Response (0x31): simple.

SetPrintSpeed

55 55 22 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ Print speed value
       │  └─ Data length = 1
       └─ SetPrintSpeed command

Response (0x32): simple.

SetLabelType

55 55 23 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ LabelType value
       │  └─ Data length = 1
       └─ SetLabelType command

Response (0x33): simple.

LabelType values

SetLanguageType

55 55 26 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ Language type value
       │  └─ Data length = 1
       └─ SetLanguageType command

Response (0x36): simple.

SetAutoShutdownTime

55 55 27 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ AutoShutdownTime value (1–4)
       │  └─ Data length = 1
       └─ SetAutoShutdownTime command

Response (0x37): simple.

AutoShutdownTime values

Value Typical duration
1 15 minutes
2 30 minutes
3 45 or 60 minutes (model-dependent)
4 60 minutes or never (model-dependent)

SetVolumeLevel

55 55 2e 01 VV CS aa aa
       │  │  │
       │  │  │
       │  │  └─ Volume level value
       │  └─ Data length = 1
       └─ SetVolumeLevel command

Response (0x3e): simple.

SetCurrentTimeFormat

55 55 11 02 02 VV CS aa aa
       │  │  │  │
       │  │  │  │
       │  │  │  └─ Format value
       │  │  └─ Constant byte (0x02)
       │  └─ Data length = 2
       └─ SetCurrentTimeFormat command

Response (0x12): simple.

SetReversePrinterFeed

55 55 1e 09 01 00 01 00 00 02 f8 01 f4 CS aa aa
       │  │
       │  │
       │  └─ Data length = 9
       └─ SetReversePrinterFeed command

Response (0x1f).

HalfCut

Request ID 0x5c, response 0x6c.

55 55 5c 02 OP VV CS aa aa
       │  │  │  │
       │  │  │  │
       │  │  │  └─ Value
       │  │  └─ Operation
       │  └─ Data length = 2
       └─ HalfCut command

Operation: 0x01 = set, 0x02 = get.

Data: 0x01 = on, 0x00 = off, 0x01 is used for get operation.

PrintQuantity

55 55 15 02 QH QL CS aa aa
       │  │  └──┤
       │  │     │
       │  │     └─ Quantity
       │  └─ Data length = 2
       └─ PrintQuantity command

Response (0x16): simple.

PrintStart

Different variants are used depending on the printer model.

Response (0x02): simple.

1 byte — used in D110, OldD11, B21V1

55 55 01 01 01 01 aa aa

2 bytes

55 55 01 02 PH PL CS aa aa
       │  │  └──┤
       │  │     │
       │  │     └─ Total pages
       │  └─ Data length = 2
       └─ PrintStart command

7 bytes — used in B1 and newer printers

55 55 01 07 PH PL 00 00 00 00 CC CS aa aa
       │  │  └──┤  └──┴──┴──┘  │
       │  │     │   Always 0   │
       │  │     │              └─ Page color (0 = default)
       │  │     └─ Total pages
       │  └─ Data length = 7
       └─ PrintStart command

9 bytes — first seen on D110M v4 / B21_PRO

55 55 01 09 PH PL 00 00 00 00 CC SS FF CS aa aa
       │  │  └──┤  └──┴──┴──┘  │  │  │
       │  │     │   Always 0   │  │  │
       │  │     │              │  │  └─ Some flag (purpose unknown)
       │  │     │              │  └─ Speed (0 = quality/slow, 1 = speed/fast)
       │  │     │              └─ Page color
       │  │     └─ Total pages
       │  └─ Data length = 9
       └─ PrintStart command

SetPageSize

Can have different payload size depending on the model. Column count must not exceed the printhead pixel width.

2 bytes

55 55 13 02 RR RR CS aa aa
       │  │  └──┤
       │  │     │
       │  │     └─ Row count (height in pixels)
       │  └─ Data length = 2
       └─ SetPageSize command

4 bytes

55 55 13 04 RR RR CC CC CS aa aa
       │  │  └──┤  └──┤
       │  │     │     │
       │  │     │     └─ Column count (width in pixels)
       │  │     └─ Row count (height in pixels)
       │  └─ Data length = 4
       └─ SetPageSize command

6 bytes

55 55 13 06 RR RR CC CC QQ QQ CS aa aa
       │  │  └──┤  └──┤  └──┤
       │  │     │     │     │
       │  │     │     │     └─ Copies count
       │  │     │     └─ Column count (width in pixels)
       │  │     └─ Row count (height in pixels)
       │  └─ Data length = 6
       └─ SetPageSize command

9 bytes

55 55 13 09 RR RR CC CC QQ QQ SS SS 00 CS aa aa
       │  │  └──┤  └──┤  └──┤  └──┤  │
       │  │     │     │     │     │  │
       │  │     │     │     │     │  └─ Is divide (0 or 1; purpose unknown)
       │  │     │     │     │     └─ Some size (purpose unknown)
       │  │     │     │     └─ Copies count
       │  │     │     └─ Column count
       │  │     └─ Row count
       │  └─ Data length = 9
       └─ SetPageSize command

13 bytes

55 55 13 0d RR RR CC CC QQ QQ KK KK CT 00 SA PP PP CS aa aa
       │  │  └──┤  └──┤  └──┤  └──┤  │     │  └──┤
       │  │     │     │     │     │  │     │     │
       │  │     │     │     │     │  │     │     └─ Part height (u16, purpose unknown)
       │  │     │     │     │     │  │     └─ Send all flag (0 or 1)
       │  │     │     │     │     │  └─ Cut type (purpose unknown)
       │  │     │     │     │     └─ Cut height
       │  │     │     │     └─ Copies count
       │  │     │     └─ Column count
       │  │     └─ Row count
       │  └─ Data length = 13
       └─ SetPageSize command

45 bytes

55 55 13 0d RR RR CC CC QQ QQ KK KK CT 00 SA PP PP [SS..SS] CS aa aa
       │  │  └──┤  └──┤  └──┤  └──┤  │     │  └──┤     │
       │  │     │     │     │     │  │     │     │     │
       │  │     │     │     │     │  │     │     │     └─ Serial (32 bytes)
       │  │     │     │     │     │  │     │     └─ Part height (u16, purpose unknown)
       │  │     │     │     │     │  │     └─ Send all flag (0 or 1)
       │  │     │     │     │     │  └─ Cut type (purpose unknown)
       │  │     │     │     │     └─ Cut height
       │  │     │     │     └─ Copies count
       │  │     │     └─ Column count
       │  │     └─ Row count
       │  └─ Data length = 13
       └─ SetPageSize command

Response (0x14): simple.

PrintEnd

Request (0xf3): simple.

Response (0xf4): data length = 1. Value 01 = print finished (accepted), 00 = still printing (not ready yet).

PrintStatus

Request (0xa3): simple.

Response (0xb3)

Minimum 4 bytes; may be 8 or 10 bytes.

55 55 B3 LL PH PL PP PF XX XX EC CS aa aa
          │  └──┤  │  │        │
          │     │  │  │        │
          │     │  │  │        └─ Error code (present if LL == 10; non-zero triggers PrintError)
          │     │  │  └─ Page feed progress (0-100 %)
          │     │  └─ Page print progress (0-100 %)
          │     └─ Current page index (u16)
          └─ Data length

Note

For some printers (B2 PRO for example), the pageFeedProgress is not in 0-100 range.

PrinterConfig2

Request ID 0x07, response 0x08.

Payload layout: [item, operation, data]

Operation: 0x01 = set, 0x02 = get.

Data: 0x01 is used for get operation.

Known items:

Byte Operation
0x02 getPrinterTime
0x08 setPrinterTime

Set Printer Time (0x07)

55 55 07 08 01 YH YL MM DD hh mm ss CS aa aa
       │  │  │  └──┤  │  │  │  │  │
       │  │  │     │  │  │  │  │  │
       │  │  │     │  │  │  │  │  └─ Second
       │  │  │     │  │  │  │  └─ Minute
       │  │  │     │  │  │  └─ Hour
       │  │  │     │  │  └─ Day
       │  │  │     │  └─ Month
       │  │  │     └─ Year
       │  │  └─ Set operation
       │  └─ Data length = 8
       └─ PrinterConfig2 command

Response (0x08): simple.

SoundSettings

Data = 3 bytes: [operation, soundItem, value]

Operation: 0x01 = set, 0x02 = get.

Sound items: 0x01 = BluetoothConnectionSound, 0x02 = PowerSound

Value: 0x01 = on, 0x00 = off, 0x01 is used for get operation.

Examples:

55 55 58 03 01 01 01 5a aa aa   ← Enable Bluetooth connection sound
55 55 58 03 01 01 00 5b aa aa   ← Disable Bluetooth connection sound
55 55 58 03 01 02 01 59 aa aa   ← Enable Power sound
55 55 58 03 02 01 01 59 aa aa   ← Query Bluetooth connection sound state

RfidInfo / RfidInfo2

RfidInfo (0x1a) reads the paper NFC tag. RfidInfo2 (0x1c) reads the ribbon NFC tag.

Request: simple.

Response (0x1b / 0x1d)

If dataLength == 1: tag not present.

55 55 ID LL U1 U2 U3 U4 U5 U6 U7 U8 BC ... SN ... AP AP UP UP CT [CP CP] U1 U2 U3 U4 U5 U6 U7 U8 CS aa aa
       │  │  └────────────────────┤  │      │      └──┤  └──┤  │   └──┤   └────────────────────┤
       │  │                       │  │      │         │     │  │      │                        │
       │  │                       │  │      │         │     │  │      │                        └─ Secondary tag UUID (optional)
       │  │                       │  │      │         │     │  │      └─ Capacity (u16, optional)
       │  │                       │  │      │         │     │  └─ Consumable type (u8)
       │  │                       │  │      │         │     └─ Used paper (u16)
       │  │                       │  │      │         └─ Total paper capacity (u16)
       │  │                       │  │      └─ Serial number (length-prefixed str)
       │  │                       │  └─ Barcode (length-prefixed str)
       │  │                       └─ Tag UUID
       │  └─ Data length
       └─ Response command (0x1b or 0x1d)

TubeSettings

55 55 0e 03 02 01 01 CS aa aa   ← tube calibration
55 55 0e 03 02 02 01 CS aa aa   ← set tube length

TubeTypeAndWidth

Get request:

55 55 0f 03 02 01 01 0f aa aa

Set request:

55 55 0f 05 01 01 TT WW WH CS aa aa

where TT is tube type and WW WH is width multiplied by 100 and encoded as u16 big-endian. Data length is 5.

Response command is 0x0f.

PrinterUsage

Request:

55 55 19 01 01 19 aa aa

The response contains two u32 counters:

55 55 19 08 IU IU IU IU OU OU OU OU CS aa aa
       │  │  └────────┤  └────────┤
       │  │           │           │
       │  │           │           └─ Outer use counter (u32)
       │  │           └─ Inner use counter (u32)
       │  └─ Data length = 8
       └─ PrinterUsage command

SetPrintMode

Two request values are supported:

55 55 2c 01 01 2c aa aa   ← Thermal
55 55 2c 01 02 2f aa aa   ← Heat transfer

Response 0x3c:

  • 01 = accepted;
  • 00 = rejected.

SetAntiSetter

Request:

55 55 2f 01 VV CS aa aa

where VV is the anti-counterfeit level.

Response 0x3f:

  • 01 = accepted;
  • 00 = rejected.

SetLabelMaterial

Request:

55 55 2d 01 VV CS aa aa

where VV is the label-material value.

Response 0x3d:

  • 01 = accepted;
  • 00 = rejected.

LabelPositioningCalibration

Request:

55 55 8e 01 VV CS aa aa

Response 0x8f:

  • 01 = calibration accepted;
  • 00 = calibration rejected.

Not sure what it does. It just throws some paper without pulling it back.

PrintTestPage

55 55 5a 01 01 5a aa aa

Response: 0x6a.

GetPaperInfo

Returns the current paper information from RFID tag. Only available for protocolVersion 4+ printers.

55 55 59 01 01 59 aa aa

Response: 0x69.

55 55 69 12 GH GL TH TL PT GH GL TH TL PW PL PW PL DR TL TL TL TL CS aa aa
       │  │  └──┤  └──┤  │  └──┤  └──┤  └──┤  └──┤  │  └──┤  └──┤
       │  │     │     │  │     │     │     │     │  │     │     │
       │  │     │     │  │     │     │     │     │  │     │     └─ Tail length (u16 / 10)
       │  │     │     │  │     │     │     │     │  │     └─ Tail length pixel (u16)
       │  │     │     │  │     │     │     │     │  └─ Direction (u8)
       │  │     │     │  │     │     │     │     └─ Paper width (u16 / 10)
       │  │     │     │  │     │     │     └─ Paper width pixel (u16)
       │  │     │     │  │     │     └─ Total height (u16 / 10)
       │  │     │     │  │     └─ Gap height (u16 / 10)
       │  │     │     │  └─ Paper type (u8, present if LL >= 9)
       │  │     │     └─ Total height pixel (u16)
       │  │     └─ Gap height pixel (u16)
       │  └─ Data length
       └─ GetPaperInfo

SetPrinterConfigurationWifi

Get request:

55 55 a2 01 01 a2 aa aa

Response: 0xb2.

GetPrinterConfigurationWifi

Response (0xb1): simple.

PrinterFree

Request:

55 55 c3 01 01 c3 aa aa

Response 0xc4:

  • 01 = printer free;
  • 00 = printer busy.

SetLocalTemplate / SetCurrentTimeFormat

0x11 is shared by two operations.

Current time format:

55 55 11 02 02 VV CS aa aa

where VV is the time-format value.

Local template data:

55 55 11 LL 01 ... CS aa aa

The first data byte is 0x01; each local-template record occupies 33 bytes. The Official SDK starts the request with 0x11, payload length 1 + 33 * recordCount, and then serializes the template records.

Pause

55 55 a6 01 VV CS aa aa
             │
             └─ Data = 0x01 (pause) or 0x02 (resume)

Response (0xb6): simple.

PrintingHistory

The SDK requests history records with a sequence of packets:

55 55 52 01 NN CS aa aa

where NN starts at 0x01 and increments while records are returned.

Response data uses:

  • 0x62 — history data;
  • 0x63 — end/pass marker.

The high-level parser extracts UUID, limit and already-used paper values from the returned records.

TemplateHistory

The response is variable-length.

0x62/0x63 are used for RFID/printing-history acquisition, with 0x63 marking completion.

Packet details (image data packets)

PrintEmptyRow

Fills a row range with blank (white) pixels. One-way (no response expected).

55 55 84 03 RR RR NN CS aa aa
       │  │  └──┤  │
       │  │     │  │
       │  │     │  └─ Repeat count (print this empty row NN times)
       │  │     └─ Row number
       │  └─ Data length = 3
       └─ PrintEmptyRow command

PrintBitmapRow

Sends a full bitmap row including both black and white pixels. One-way (no response expected).

55 55 85 LL RR RR C1 C2 C3 NN DD ... DD CS aa aa
       │  │  └──┤  └──┴──┤  │  └─────┤
       │  │     │        │  │        │
       │  │     │        │  │        └─ Pixel data (cols/8 bytes)
       │  │     │        │  └─ Repeat count
       │  │     │        └─ Black pixel count segment (3 bytes, see below)
       │  │     └─ Row number
       │  └─ Data length
       └─ PrintBitmapRow command

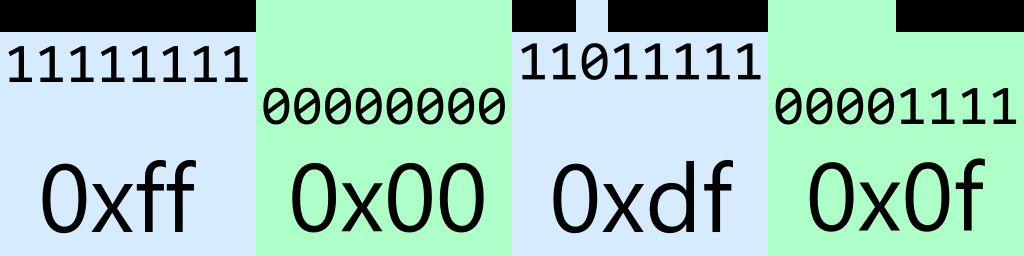

Image row example:

pixels

Packet example:

55 55 85 0a 00 00 13 00 00 01 ff 00 df 0f CS aa aa
       │  │  └──┤  └──┴──┤  │  └──┴──┴──┤
       │  │     │        │  │           └─ Draw 32 pixels (19 black, 13 empty)
       │  │     │        │  └─ Repeat count (repeat row 1 time)
       │  │     │        └─ Black pixel count (19)
       │  │     └─ Row number is 0
       │  └─ Data length
       └─ PrintBitmapRow command

PrintBitmapRowDoubleColor

Color mode:

0 - empty
2 - black
1 - red
3 - mixed (pattern)

PrintEmptyRow (SubCmd 0x84)

55 55 8a 05 00 84 RR RR NN CS aa aa
       │  │  │  │  └──┤  │
       │  │  │  │     │  │
       │  │  │  │     │  └─ Repeat count
       │  │  │  │     └─ Row number
       │  │  │  └─ Sub-command = 0x84
       │  │  └─ Color mode (empty)
       │  └─ Data length
       └─ PrintBitmapRowDoubleColor command

PrintBitmapRowIndexed (SubCmd 0x83)

55 55 8a LL CC 83 RR RR NN II II ... CS aa aa
       │  │  │  │  └──┤  │  └──────┤
       │  │  │  │     │  │         │
       │  │  │  │     │  │         └─ Pixel indexes (2 bytes per index)
       │  │  │  │     │  └─ Repeat count
       │  │  │  │     └─ Row number
       │  │  │  └─ Sub-command = 0x83
       │  │  └─ Color mode
       │  └─ Data length
       └─ PrintBitmapRowDoubleColor command

PrintBitmapRow (SubCmd 0x85)

55 55 8a LL CC 85 RR RR NN DD ... DD CS aa aa
       │  │  │  │  └──┤  │  └──────┤
       │  │  │  │     │  │         │
       │  │  │  │     │  │         └─ Raw pixel data
       │  │  │  │     │  └─ Repeat count
       │  │  │  │     └─ Row number
       │  │  │  └─ Sub-command = 0x85
       │  │  └─ Color mode
       │  └─ Data length
       └─ PrintBitmapRowDoubleColor command

Data Pattern Mode (Color mode 0x03)

55 55 8a LL 03 RR RR NN DD ... DD CS aa aa
       │  │  │  └──┤  │  └─────┤
       │  │  │     │  │        │
       │  │  │     │  │        └─ Presence mask + Color mask
       │  │  │     │  └─ Repeat count
       │  │  │     └─ Row number
       │  │  └─ Pattern mode = 0x03
       │  └─ Data length
       └─ PrintBitmapRowDoubleColor command

Example

Example for 576 px row:

576 / 8 = 72 bytes

The first part of DD is therefore always 72 bytes.

Presence mask

black = 1
red   = 1
empty = 0

576 pixels → 72 bytes.

Bits are packed MSB-first:

pixels:  . . . . . R R R
mask:    0 0 0 0 0 1 1 1
byte:    00000111 = 07

Color mask

For every non-empty 8-pixel block:

black = 0
red   = 1
empty = 0

The bit positions are preserved.

Example:

. . . R R R R R
0 0 0 1 1 1 1 1
= 0x1F

Another:

R R R R R R . .
1 1 1 1 1 1 0 0
= 0xFC

A completely empty 8-pixel block produces no color byte at all.

Therefore:

DD = presence_mask[72 bytes] + color_bytes[variable length]

Example: black → red → black

For 576 px:

BLACK: x = 45..175
RED:   x = 219..349
BLACK: x = 391..521

The presence mask contains: 72 bytes There are 52 non-empty 8-pixel blocks: 17 + 17 + 18 = 52

Therefore:

DD.length = 72 + 52 = 124 = 0x7C
LL        = 124 + 4 = 128 = 0x80

Color data is:

17 bytes: 00        // black
17 bytes: 1F FF ... FC  // red
18 bytes: 00        // black

Complete packet

55 55 8A 80 03 RR RR NN
   72-byte presence mask
   52-byte color mask
   CS
AA AA

Black pixel count segment (3 bytes: C1, C2, C3)

Counts non-zero bits in the pixel data array. Two modes:

Split mode (default when dataSize ≤ printhead_pixels / 8):

Data is divided into three equal chunks (chunk size = printhead_pixels / 8 / 3). C1, C2, C3 = black pixel count in each chunk respectively (each capped at 255).

Total mode (used when data is wider than printhead, or explicitly requested):

C1 = 0, C2 = lowByte(total), C3 = highByte(total) — i.e. total pixel count in little-endian in bytes 2–3.

auto mode (default in library): uses split if data fits, total otherwise.

Usually the printer works correctly when all three bytes are 0x00.

Example:

55 55 85 0a 00 00 13 00 00 01 ff 00 df 0f CS aa aa
       │  │  └──┤  └──┴──┤  │  └──┴──┴──┤
       │  │     │        │  │           │
       │  │     │        │  │           └─ 4 bytes pixel data (32 pixels: 19 black, 13 white)
       │  │     │        │  └─ Repeat = 1
       │  │     │        └─ Pixel count segment: C1=0x00, C2=0x00, C3=0x13 (19 total)
       │  │     └─ Row number = 0
       │  └─ Data length = 10
       └─ PrintBitmapRow command

PrintBitmapRowIndexed

Used when black pixel count ≤ 6. Encodes only the positions of black pixels as unsigned 16-bit indexes. One-way (no response expected).

If pixel count exceeds 6 the library throws an error and uses PrintBitmapRow instead.

55 55 83 LL RR RR C1 C2 C3 NN II II II II ... CS aa aa
       │  │  └──┤  └──┴──┤  │  └──┴──┴──────┤
       │  │     │        │  │               │
       │  │     │        │  │               └─ Pixel indexes (2 bytes each)
       │  │     │        │  └─ Repeat count
       │  │     │        └─ Black pixel count segment (same format as PrintBitmapRow)
       │  │     └─ Row number
       │  └─ Data length
       └─ PrintBitmapRowIndexed command

Example (2 black pixels at positions 10, 320):

55 55 83 0a 00 03 02 00 00 02 00 0a 01 40 CS aa aa
       │  │  └──┤  └──┴──┤  │  └──┤  └──┤
       │  │     │        │  │     │     │
       │  │     │        │  │     │     └─ Pixel at x=320
       │  │     │        │  │     └─ Pixel at index x=10
       │  │     │        │  └─ Repeat = 2
       │  │     │        └─ Pixel count: C1=0x02, C2=0x00, C3=0x00
       │  │     └─ Row number = 3
       │  └─ Data length = 10
       └─ PrintBitmapRowIndexed command

CompressCommand

Request ID 0x87. Wraps and compresses image row data or commands.

55 55 87 LL LL CH CL XX ... XX CS aa aa
       │  └──┤  └──┤  │      │
       │     │     │  │      │
       │     │     │  └──────┴─ Compressed payload bytes
       │     │     └─ Original uncompressed length (u16)
       │     └─ Data length (u16) = payload_len + 2
       └─ CompressCommand identifier

CompressImage

Request ID 0xa7. Transmits large compressed image packets.

55 55 a7 L1 L2 L3 L4 CH CL XX ... XX CS aa aa
       │  └───────┤  └──┤  │      │
       │          │     │  │      │
       │          │     │  └──────┴─ Compressed bitmap data bytes
       │          │     └─ Original size (u16)
       │          └─ Data length (u32) = bitmap_len + 2
       └─ CompressImage identifier

GetPrinterCapabilities

Request ID 0xaf, response 0xbf.

Request: simple (55 55 af 01 01 af aa aa).

Response (0xbf)

Payload consists of TLV (Type-Length-Value) blocks encoded sequentially:

  • Type (u8): Capability Field ID.
  • Length (u8): Byte length of the field value.
  • Value: Field-specific value representation.
55 55 bf LL T1 L1 V1... T2 L2 V2... CS aa aa
             │  │  │     └──┴──┤
             │  │  │           └─────── Next TLV block
             │  │  └────────────────── Value (L1 bytes)
             │  └───────────────────── Length of field (L1 bytes)
             └──────────────────────── Field ID (Type)

Capability Field IDs

Field ID Field Name Data Type & Format Description / Notes
0x01 Language uint8 (bitmask) Supported languages (bit positions)
0x02 PrintMode uint8 (bitmask) Supported print modes
0x03 UhfRfid uint8 (bitmask) UHF RFID capabilities
0x04 PrintheadDpi uint16 DPI classification (e.g. 200 or 300)
0x05 RfidSupport uint8 (bitmask) RFID tag support flags
0x06 BatteryRange uint8[2] ([max, min]) Battery level bounds
0x07 DensityRange uint8[2] ([max, min]) Density adjustment range
0x08 SpeedRange uint8[2] ([max, min]) Speed adjustment range
0x09 SupportedLabelTypes uint8[4] (bitmask) Supported label types
0x0a PrintheadWidth uint16 Printhead width in pixels/dots
0x0b MaxPrintHeight uint16 Maximum print height in pixels/dots
0x0c LabelHeightAndGap uint8 Default label height / gap setting
0x0d PrintheadPosition uint8 Printhead physical position code
0x0e VolumeSupport uint8 (bitmask) Audio volume support
0x0f HostStyle uint8 (bitmask) Supported host communication styles
0x10 PrintProtocol uint8 (bitmask) Supported print protocol options
0x11 AutoShutdownRange uint8[2] ([max, min]) Auto-shutdown options range
0x12 CutterSupport uint8 (bitmask) Paper cutter capabilities
0x13 CutterDepthRange uint8[2] ([max, min]) Cutter depth range
0x14 PrintControl uint8 (bitmask) Supported print control flags
0x15 PauseTimeSupport uint8 (bitmask) Pause interval options
0x16 PaperDetection uint8 Paper detection mechanism type
0x17 RealTimeClock uint8 (bitmask) RTC features support
0x18 KeyFunctions uint8[] (5 bytes/item) Physical key mappings: key (u8), functions (uint8[4] bitmask)
0x19 Unknown19 uint8 Unknown / reserved
0x1a PrintColor uint8 (bitmask) Supported color modes
0x1b SpeedQualityMode uint8 (bitmask) Supported speed/quality modes
0x1c TubeCalibration uint8 (bitmask) Tube calibration options
0x1d PartialRetransmitSupport uint8 (bitmask) Partial retransmit capability
0x1e MaxCompressLines uint16 Max line count per compression unit
0x1f TubeSupport uint8 (bitmask) Tube printing support
0x20 SixteenGrayMaxBuffer uint16 Maximum buffer size for 16-gray scale
0x21 LocalTemplateSupport uint8 (bitmask) Local template capabilities
0x22 ImageCompressSupport uint8 (bitmask) Supported image compression modes
0x23 MaxImageCompressBytes uint32 (u32 BE) Maximum image compression buffer size
0x24 LocalTemplateMaxTimeCount uint8 Max local template execution/time count

PrinterCheckLine

Sent from the printer periodically during printing (every 200 rows).

55 55 86 03 RR RR 01 CS aa aa
       │  │  └──┤  │
       │  │     │  │
       │  │     │  └─ Always 0x01
       │  │     └─ Row number
       │  └─ Data length = 3
       └─ PrinterCheckLine command

Heartbeat

Sent by the client every 2000 ms (default interval) after connection.

Request

Type 1 — Advanced1 (used when protocolVersion < 3)

55 55 dc 01 01 dc aa aa

Type 2 — PrinterInfo

55 55 dc 01 03 dc aa aa

Type 4 — Advanced2 (used when protocolVersion >= 3)

55 55 dc 01 04 d9 aa aa

Response — Advanced1 (0xdd)

Purpose of skipped bytes is unknown, they are ignored in official SDK.

10 bytes (e.g. D110)

55 55 dd 0a [8 bytes skipped] LC CL CS aa aa
                               │  │
                               │  │
                               │  └─ Lid Closed (0 = closed)
                               └─ Charge Level

13 bytes (e.g. B1)

55 55 dd 0d [9 bytes skipped] LC CL PI RF CS aa aa
                               │  │  │  │
                               │  │  │  │
                               │  │  │  └─ Paper RFID Success (1 = ok)
                               │  │  └─ Paper Inserted (0 = inserted)
                               │  └─ Charge Level
                               └─ Lid Closed (0 = closed)

19 bytes

55 55 dd 13 [15 bytes skipped] LC CL PI RF CS aa aa
                                │  │  │  │
                                │  │  │  │
                                │  │  │  └─ Paper RFID Success (1 = ok)
                                │  │  └─ Paper Inserted (0 = inserted)
                                │  └─ Charge Level
                                └─ Lid Closed (0 = closed)

20 bytes

55 55 dd 14 [18 bytes skipped] PI RF CS aa aa
                                │  │
                                │  │
                                │  └─ Paper RFID Success (1 = ok)
                                └─ Paper Inserted (0 = inserted)

For the legacy 0xdd response, the Official SDK parser selects the payload layout from the printer model ID:

Printer model ID Payload length Parsed fields
256, 257, 258, 260, 262 17 lid/cover state
512, 513, 514, 1792, 2304, 2560, 272, 273, 274, 3584, 3840, 4352, 5120 17 lid/cover, charge, paper RFID
768, 769, 770, 771, 772, 774, 775, 776, 2816, 4096 20 lid/cover, charge, paper, paper RFID
1025 27 paper, ribbon RFID
2049, 2050, 2051, 2052 26 lid/cover, charge, paper, ribbon RFID

Note

For models with IDs 512, 513, 514, 272, 273, 274, 1792, 2304, 2560, 3584, 3840, 4352, 5120 the lidClosed byte meaning is inverted (1 = closed instead of 0 = closed).

Response — Advanced2 (0xd9)

Minimum payload length: 9 bytes.

                                        ┌ Other bytes starting from this byte are optional (inclusive)
                                        │
55 55 d9 LL 2e c3 64 4d 00 00 01 01 00 00 00 00 00 00 CS aa aa
                   │  │  │  │  │  │  │  └──┤     │  │
                   │  │  │  │  │  │  │     │     │  └─ VoltageState
                   │  │  │  │  │  │  │     │     └─ LightingErrorCode
                   │  │  │  │  │  │  │     └─ Wifi RSSI
                   │  │  │  │  │  │  └─ Ribbon inserted
                   │  │  │  │  │  └─ Ribbon RFID Success (1 - RFID ok)
                   │  │  │  │  └─ Paper RFID Success (0 - RFID ok)
                   │  │  │  └─ Paper Inserted (0 - inserted)
                   │  │  └─ Lid Closed (0 - closed)
                   │  └─ Temperature
                   └─ Charge Level

Response — PrinterInfo (0xde)

55 55 de 0a VH VL VH VL WH WL AC HA SR SW CS aa aa
             └──┤  └──┤  └──┤  │  │  │  │
                │     │     │  │  │  │  └─ Supports write RFID
                │     │     │  │  │  └─ Supports RFID
                │     │     │  │  └─ Printhead alignment
                │     │     │  └─ Print accuracy
                │     │     └─ Printhead width (u16)
                │     └─ Software version (u16)
                └─ Hardware version (u16)

Print accuracy actually looks like DPI classification:

Byte Meaning
0x02 203 dpi
0x03 300 dpi

Example:

55 55 DE 0A 05 0A 05 16 01 80 02 02 01 00 48 AA AA - B1
55 55 DE 0A 03 01 03 09 02 40 03 02 01 00 9E AA AA - B21 Pro

StartFirmwareUpgrade

Firmware upgrade uses CRC32 packets exclusively. The exchange is driven by the printer.

Full sequence

Client                              Printer
  │                                    │
  ├─ StartFirmwareUpgrade (0xf5) ─────►│  payload: [major, minor] version bytes
  │◄─ In_StartFirmwareUpgrade (0xf6) ──┤  simple response
  │                                    │
  │◄─ In_RequestFirmwareCrc (0x90) ────┤  printer initiates CRC request
  ├─ FirmwareCrc (0x91) ──────────────►│  payload: CRC32 of full firmware blob (4 bytes big-endian)
  │                                    │
  │  ↻ chunk loop (printer-driven):    │
  │◄─ In_RequestFirmwareChunk (0x9a) ──┤  index = requested chunk number
  ├─ FirmwareChunk (0x9b) ────────────►│  index = chunk number, data = up to 200 bytes
  │                                    │
  ├─ FirmwareNoMoreChunks (0x9c) ─────►│  payload: 01 (signals no more data)
  │◄─ In_FirmwareCheckResult (0x9d) ───┤  data[0] = 1 (CRC ok) or 0 (error)
  │                                    │
  ├─ FirmwareCommit (0x92) ───────────►│  payload: 01
  │◄─ In_FirmwareResult (0x9e) ────────┤  data[0] = 1 (success) or 0 (error)
  • Chunk size: 200 bytes.
  • FirmwareCrc, FirmwareChunk, FirmwareNoMoreChunks, FirmwareCommit are one-way (no response waited per packet — the printer drives the exchange).
  • CRC32 checksum in firmware packets covers [cmd, indexHigh, indexLow, dataLen, ...data].

Printer error codes

Returned with In_PrintError.

Code Name
0x01 CoverOpen
0x02 LackPaper (no paper)
0x03 LowBattery
0x04 BatteryException
0x05 UserCancel
0x06 DataError
0x07 Overheat
0x08 PaperOutException
0x09 PrinterBusy
0x0a NoPrinterHead
0x0b TemperatureLow
0x0c PrinterHeadLoose
0x0d NoRibbon
0x0e WrongRibbon
0x0f UsedRibbon
0x10 WrongPaper
0x11 SetPaperFail
0x12 SetPrintModeFail
0x13 SetPrintDensityFail
0x14 WriteRfidFail
0x15 SetMarginFail
0x16 CommunicationException
0x17 Disconnect
0x18 CanvasParameterError
0x19 RotationParameterException
0x1a JsonParameterException
0x1b B3sAbnormalPaperOutput
0x1c ECheckPaper
0x1d RfidTagNotWritten
0x1e SetPrintDensityNoSupport
0x1f SetPrintModeNoSupport
0x20 SetPrintLabelMaterialError
0x21 SetPrintLabelMaterialNoSupport
0x22 NotSupportWrittenRfid
0x32 IllegalPage
0x33 IllegalRibbonPage
0x34 ReceiveDataTimeout
0x35 NonDedicatedRibbon
