NIIMBOT B1 Pro
Properties
| Parameter | Value |
|---|---|
| ID | 4097 |
| DPI | 300 |
| Printhead size | 48mm / 576px (verified) |
| Print direction | top |
| Paper types | 1,2,5 |
| Density range | 1-[3]-5 |
| Printer type | thermal |
HW
| Parameter | Value |
|---|---|

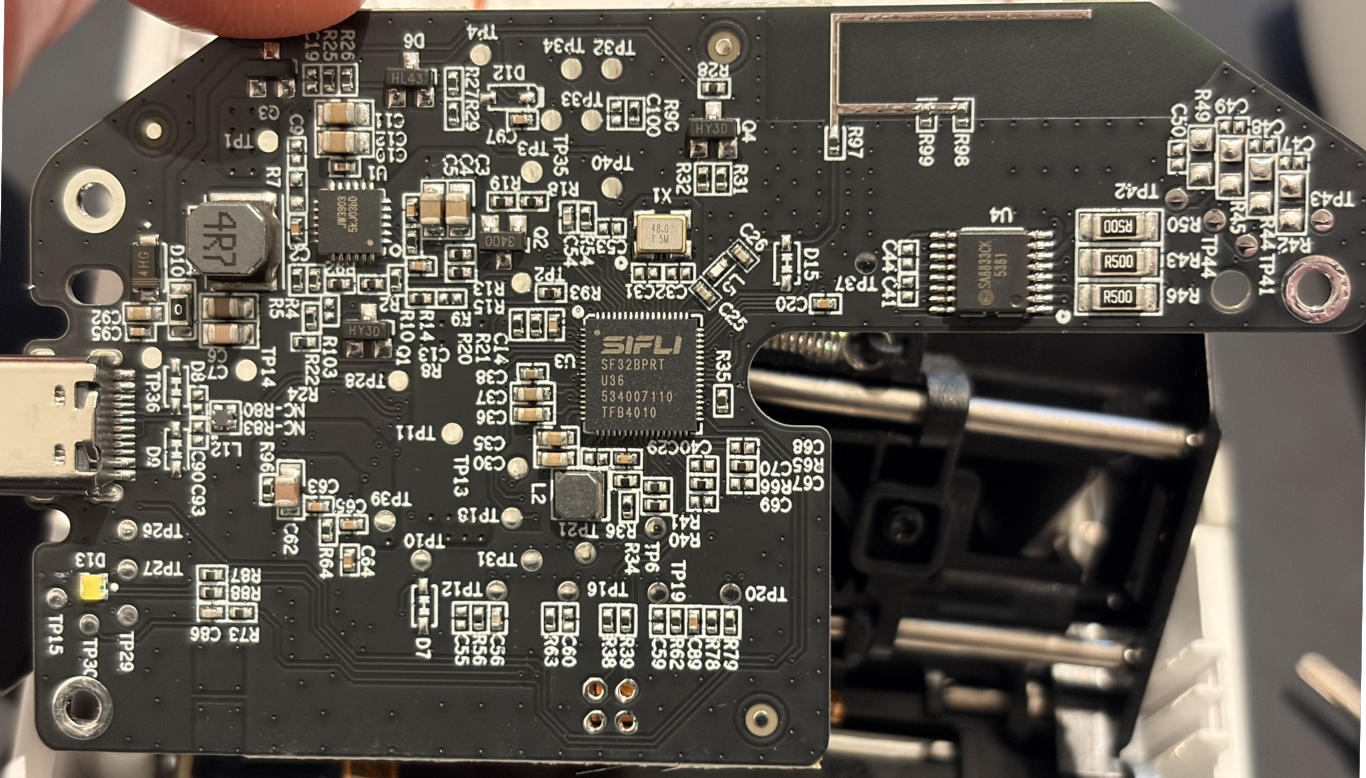

| MCU | SiFli SF32BPRTU36 (it seems to be SF32LB52x compatible) |
| Firmware file offset | 0x1C |
| SiFli bootloader | 0x0 - 0xFFFF |
| Bootloader | 0x10000000 - 0x10008FFF |
| Application (update process writes it) | 0x10009000 – 0x10088FFF |
| Factory data (serial number and other) | 0x100FE000 – 0x100FE107 |
| Settings | 0x100FF000 – 0x100FF253 |
B1 PRO uses compressed firmware file payload.
