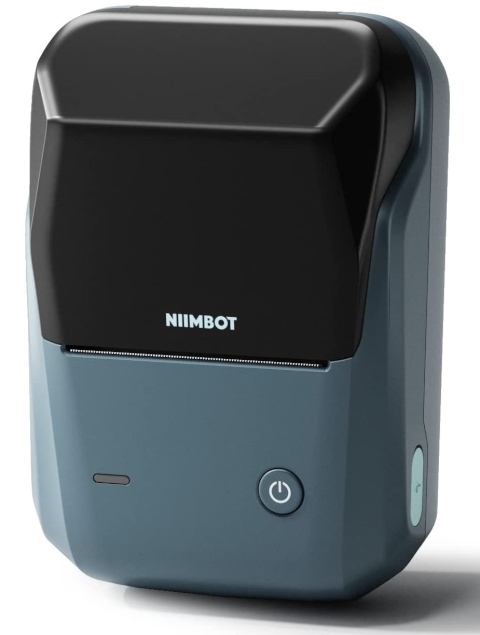

NIIMBOT B1
Properties
| Parameter | Value |
|---|---|
| ID | 4096 |
| DPI | 203 |
| Printhead size | 48mm (384px) |
| Print direction | top |
| Paper types | 1,2,5 |
| Density range | 1-[3]-5 |
| Printer type | thermal |

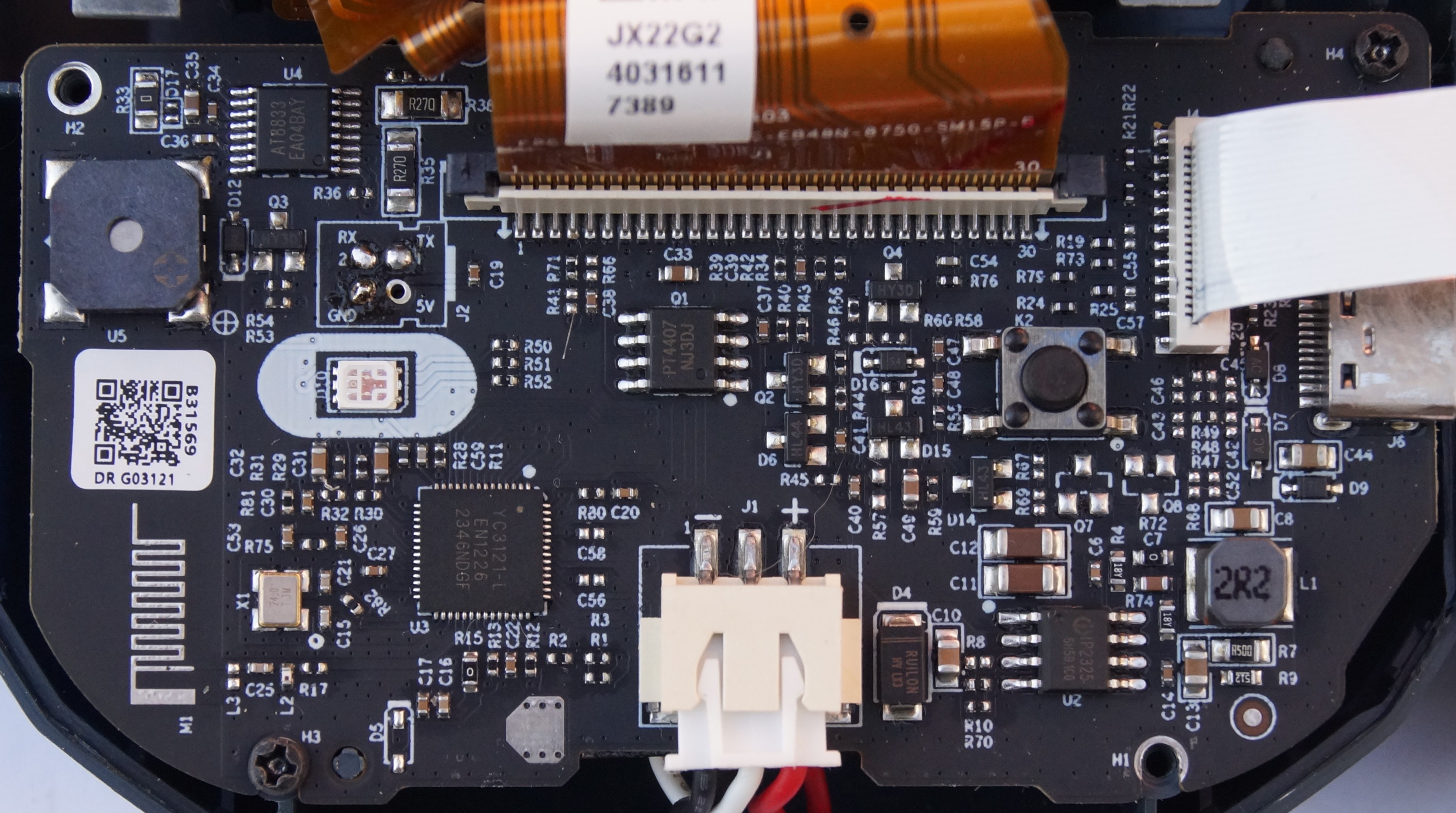

HW 5.10
| Parameter | Value |
|---|---|
| MCU | YiCHiP YC3121-L |
| Firmware base address | 0x01010000 |
| Firmware file offset | 0 |

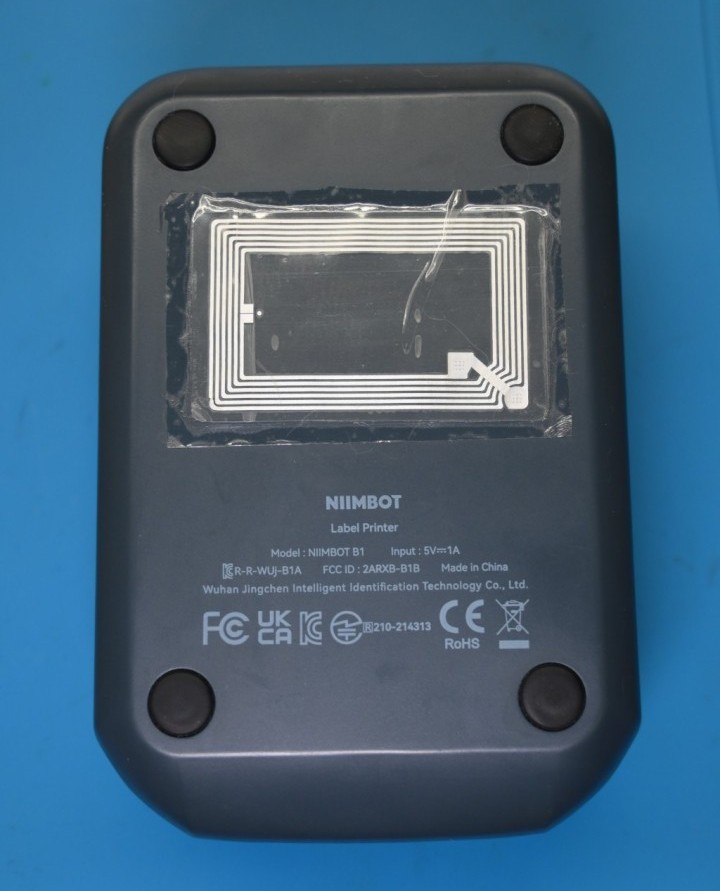

Attaching RFID tag to the printer case
You can carefully detach RFID tag from the roll and attach it to the printer case as shown below:
This can be used for testing purposes as it allows to print on any label paper.
Notes:
- Counter will be still incremented.
- First calibration (after power up and lid close) will use RFID paper height so If you are using different paper height, first print may be misaligned.
